Star Wars Model LED & Fibre Optic Millennium Falcon Light Kit LARGER SET BLUE SUBLIGHT DRIVE

Dispatch Time:
This light kit is subject to a 5 working day dispatch time.

Prewired LED Light Kit

Millennium Falcon - Larger Set With Blue Sublight Drive Lighting

This is an upgrade set that fits the larger Falcon models or toy conversions  (a Hasbro base was used to construct the set, which is roughly 70cm x 50cm).

As long as your model base is within these dimensions, this kit should be ideal. Also take into consideration the requirement to conceal the wiring within the model.

The set is intended to recreate the same layout as our popular 1:72 Revell set, and includes the same 3mm led colour scheme. If you view the photos, the model used is the Revell to give you an idea of the lighting layout.

Please note: fitting instructions are not provided with this set.

The 180mm LED clusters are broken down into four main sections, each labelled front left, front right, rear left, rear right (as you look down at the inside of the base) for ease of fitting. Each of these sections are on a 25cm wire from the main terminal block.

The two front cool white lights are upgraded to 5mm flat type ultra bright LEDs, on 50cm wires.

The cockpit lighting section is fitted on a 50cm wire and is upgraded to two colour changing fibre optic LEDs (each with x5 1mm / 100mm fibres), a 5mm ultra violet LED and a 3mm warm white LED.

The separate sublight drive lighting section has considerably more LEDs, 42 in total, consisting of two 21 smd LED strips (both 35cm long) for nice even light output. This set is fitted with BLUE strips as shown.

The set is run by two 9v batteries (not included), and has two slide switch units fitted next to the battery clips which is ideal for a portable model.

More battery pack options available below.


The light kit is fitted with screw terminal blocks, making it easier to take apart and install the switch and battery wires. There are two of these, each 1000mm long, running to a 9v battery clip.
An spdt slide switch is fitted to each on a 200mm wire, next to the battery clip.

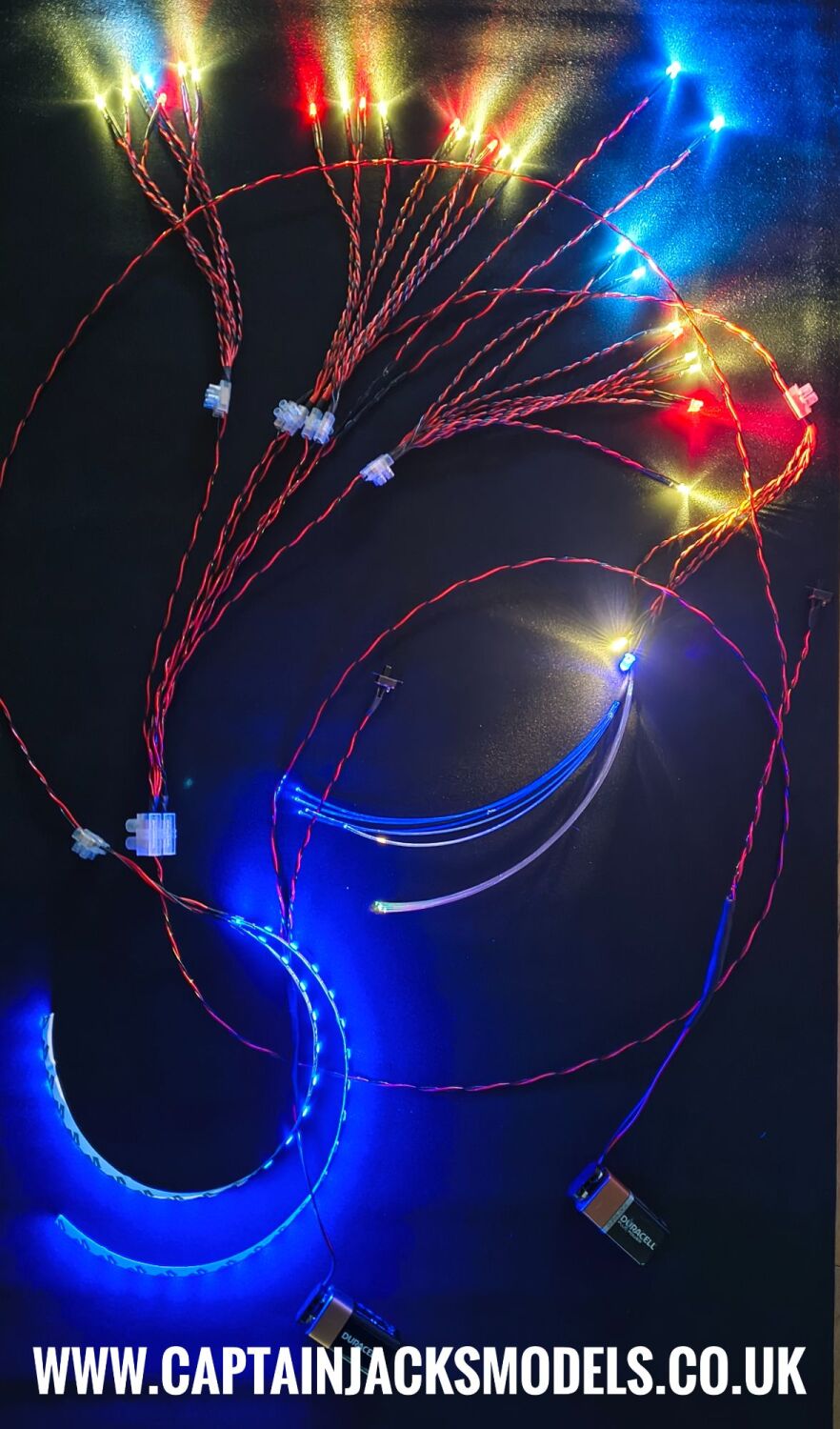

Summary Of Light Kit Contents

Our light kits are completely pre-wired and ready to fit unless otherwise stated in the listing.

Main Lighting Circuit
x2  5mm Ultra Bright Flat Top Cool White LEDs
x14  3mm Ultra Bright Warm White LEDs
x8  3mm Ultra Bright Red LEDs
x3  3mm Ultra Bright Cool White LEDs
x2  Red / Green / Blue Slow & Fast Fibre Optic LEDs (each with five 100mm long 1mm diameter fibres)

These are split into groups to make it easier to replicate the original Revell layout as shown, however the set can be fitted to the model makers preference.

Sublight Drive Engine LED Strip Circuit
x2  Neon Blue SMD LED Strips
Each strip has 21 LEDs and is 35cm long.

Power Leads To Each Circuit
There are two of these, each 1000mm long, running to their own 9v battery clip.
An spdt slide switch is fitted to each on a 200mm wire, next to the battery clip, which can easily be fitted in the models display stand.

Requires x2 9volt batteries (not included).
9V Batteries give an approximate constant run time of 1 to 2 hours. If longer constant operation is required, we have suitable AA battery packs listed HERE (set requires two of these - one for each switched circuit).which provide approximately 6 hours.

If the model is to be kept on display in a single location, we also have a UK mains supply version which would be the best option.
