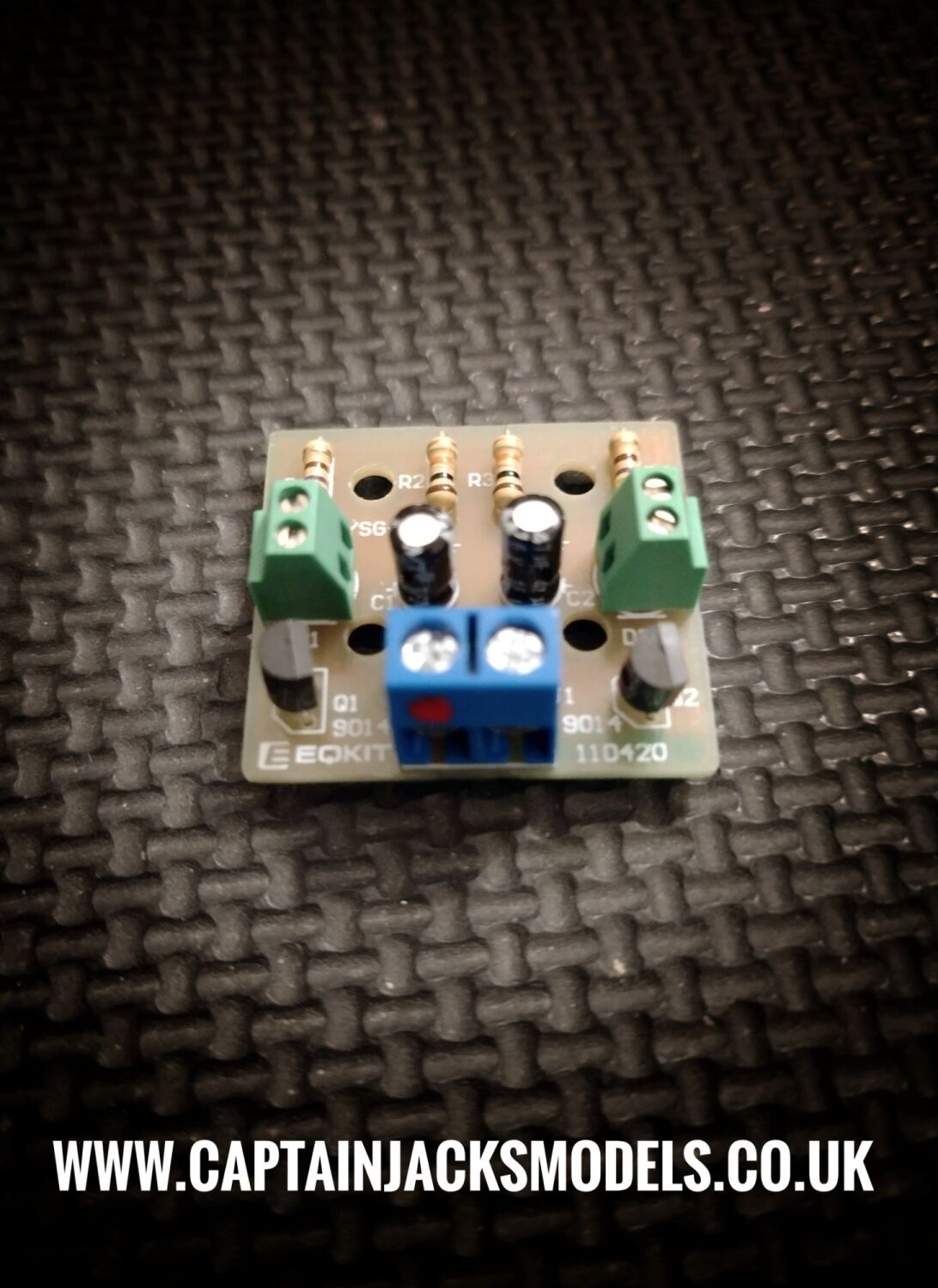

Alternating LED Flash Board 3v to 9v DC - Fully Assembled Circuit Board

Fully assembled, professionally soldered, fully tested.

Board has two ports that will flash two LEDs alternatively.

This is an astable type circuit, and requires both LEDs to be connected to the board.

Screw terminal connections for power source:

Blue Terminal: Power Input Leads (3V to 9V DC maximum)

Green Micro Terminals: One each side to make adding LEDs easy.

(Note: The green terminals secure wiring by moving in an upwards direction)

The positive connections on each terminal are marked in red.

Flash Rate: Approximately twice per second.

Board has an operating voltage iput of between 3v to 9v DC maximum.

Overall board dimensions (L x W x H): 35mm x 26mm x 12mm
